Download

STABLE RELEASE

ESP32forth-{{STABLE_VERSION}}.zip - Single .ino file ready for installation
Version: {{STABLE_VERSION}} (Stable)

LONG TERM STABLE RELEASE

ESP32forth-{{OLD_STABLE_VERSION}}.zip - Single .ino file ready for installation
Version: {{OLD_STABLE_VERSION}} (Long-term Stable)

Beta Release

ESP32forth-{{VERSION}}.zip - Single .ino file ready for installation
Version: {{VERSION}} (Beta)

Release Archive - Prior Releases

http://github.com/flagxor/ueforth - Complete Unprocessed Source Code

License

NOTE: Although Esp32forth is licensed under Apache 2.0, please be aware that binaries built with the Arduino IDE (such as ESP32forth) include components and libraries under other additional licenses.
The ESP32 plugin for Arduino is also under a different license.
Additionally, the ESP32 toolchain used by Arduino, contains further components under other licenses.
Be sure to consult a lawyer before using for comercial purposes.

Copyright 2021 Bradley D. Nelson

Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.

Install

Download the Arduino IDE for your platform.

Go to File > Preferences.
Under Additional Board Manager URLs add:

Select your serial port under Tools > Port.

Under Tools choose board and settings as below under Tools.

BOARD ESP32 Version Tools Settings
OTHER ESP32-XXX BOARDS
Use a more exact board selection or consult documentation to choose equivalent Dev Module settings. Your mileage may vary.
NOTE: Not all ESP-32 boards are compatible with Arduino. 		2.0.1 Board: Your board type OR closest Dev Module
Partition Scheme: Favor more App storage if option available
ESP32-WROOM
 1.0.6 Board: ESP32 Dev Module
Partition Scheme: No OTA (2M APP, 2M SPIFFS) ← Non-default
Upload Speed: 921600
CPU Frequency: 240MHz
Flash Frequency: 80MHz
Flash Mode: QIO
Flash Size: 4MB (32Mb)
Core Debug Level: None
PSRAM: Disable
Arduino Runs On: Core 1
Events Run On: Core 1
ESP32-WROVER
 1.0.6 Board: ESP32 Dev Module
Partition Scheme: No OTA (2M APP, 2M SPIFFS) ← Non-default
Upload Speed: 921600
CPU Frequency: 240MHz
Flash Frequency: 80MHz
Flash Mode: QIO
Flash Size: 4MB (32Mb)
Core Debug Level: None
PSRAM: Enabled
Arduino Runs On: Core 1
Events Run On: Core 1

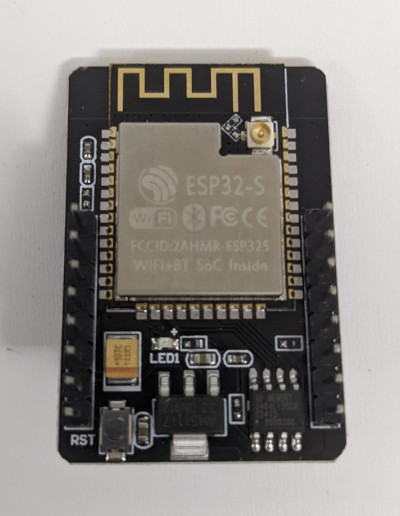

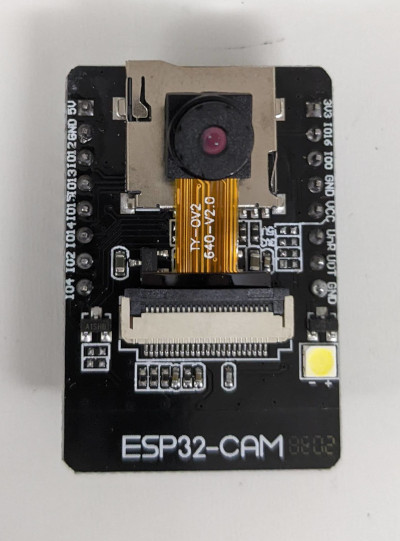

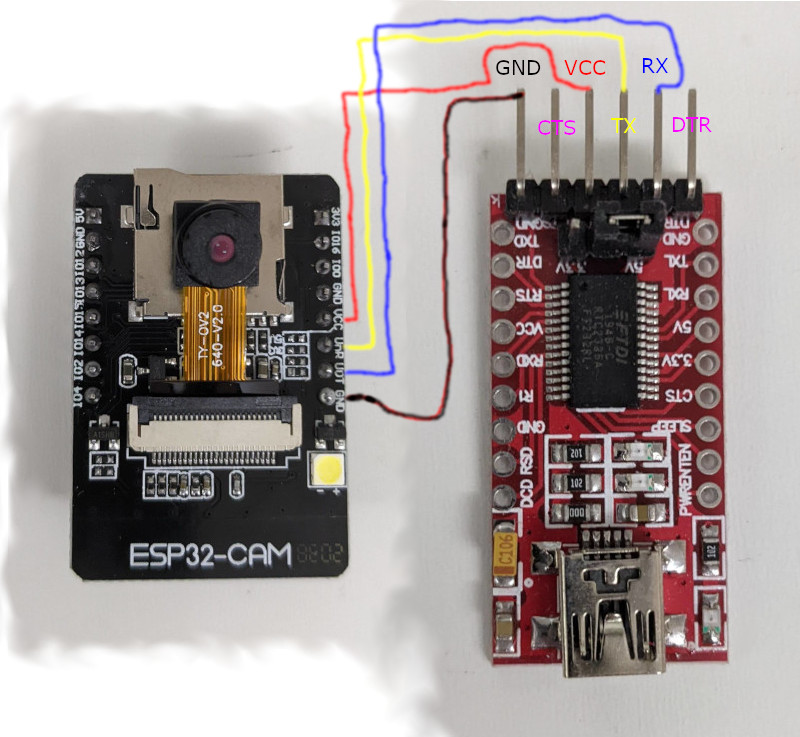

ESP32-CAM
 1.0.6 Board: AI Thinker ESP32-CAM

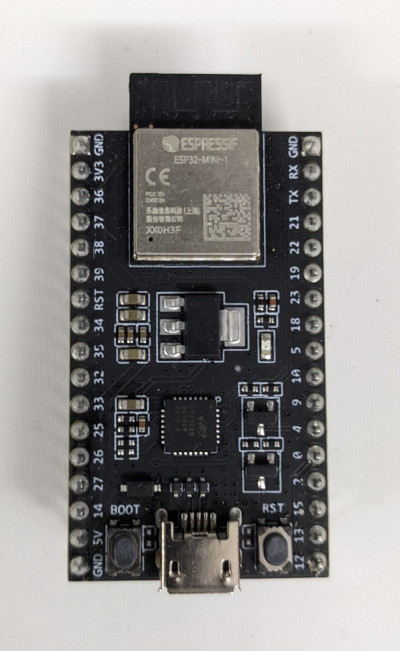

ESP32-MINI-1
ESP32-SOLO-1
NOT CURRENTLY SUPPORTED 		N/A NOT CURRENTLY SUPPORTED
Arduino builds ESP32 assuming dual core, but the SOLO and MINI have only one core.

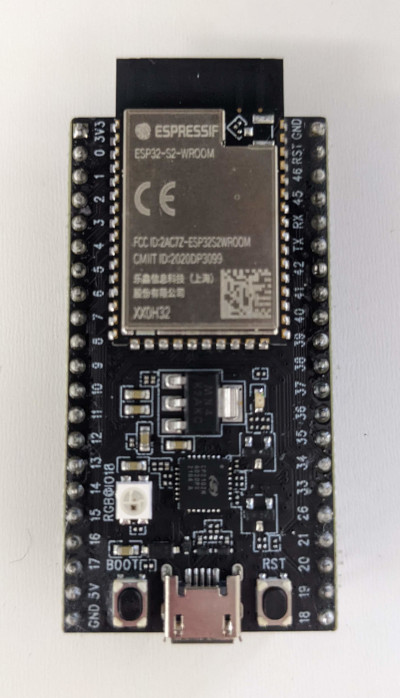

ESP32-S2-WROOM
 2.0.1 Board: ESP32S2 Dev Module
Partition Scheme: No OTA (2M APP, 2M SPIFFS) ← Non-default
Upload Speed: 921600
USB CDC On Boot: Disabled
USB Firmware MSC On Boot: Disabled
USB DFU On Boot: Disabled
Upload Mode: UART0
CPU Frequency: 240MHz
Flash Frequency: 80MHz
Flash Mode: QIO
Flash Size: 4MB (32Mb)
Core Debug Level: None
PSRAM: Disabled

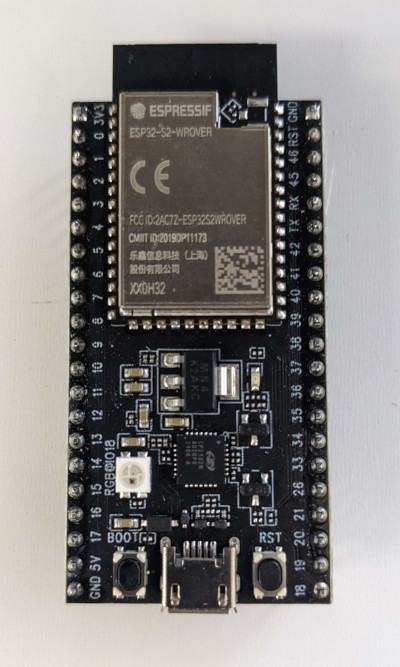

ESP32-S2-WROVER
 2.0.1 Board: ESP32S2 Dev Module
Partition Scheme: No OTA (2M APP, 2M SPIFFS) ← Non-default
Upload Speed: 921600
USB CDC On Boot: Disabled
USB Firmware MSC On Boot: Disabled
USB DFU On Boot: Disabled
Upload Mode: UART0
CPU Frequency: 240MHz
Flash Frequency: 80MHz
Flash Mode: QIO
Flash Size: 4MB (32Mb)
Core Debug Level: None
PSRAM: Enabled
ESP32-C3-MINI-1
(ESP32-C3-DevKitM-1)

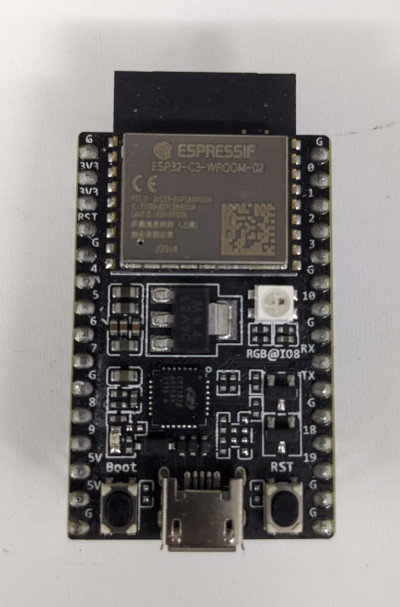

 ESP32-C3-WROOM-02
(ESP32-C3-DevKitC-02)
2.0.1 Board: ESP32C3 Dev Module
Partition Scheme: No OTA (2M APP, 2M SPIFFS) ← Non-default
Upload Speed: 921600
USB CDC On Boot: Disabled
CPU Frequency: 160MHz
Flash Frequency: 80MHz
Flash Mode: QIO
Flash Size: 4MB (32Mb)
Core Debug Level: None
PSRAM: Disabled

Use

Initially ESP32forth can be interacted with over a serial port (over USB). You can do this from the Arduino IDE's Serial Monitor option. Be sure to config the serial port to: baud rate = 115200, data bits = 8, stop bits = 1, and parity = N.

On boot, ESP32forth configures PIN 2 (typically an LED) to be an output and brings it HIGH (lighting the LED after boot).

ESP32forth Features

ESP32forth Specific Words

{{COMMON}} {{POSIX_COMMON}}

ESP32forth Bindings

Because Arduino builds a statically linked image for flashing into ESP32 devices, all C function bindings need to be explicitly added. This is the current collection. Typically to reduce confusion, function names have be preserved even through verbose. In popular cases a shorted higher level name is provided.

See template.ino.

Allocation
These words are inside the internals vocabulary.
MALLOC ( n -- a | 0 )   System malloc
SYSFREE ( a -- )   System free
REALLOC ( a n -- a | 0 )   System realloc
Serial
These words are inside the Serial vocabulary.
Serial.begin ( baud -- )   Start serial port
Serial.end ( -- )   End serial port
Serial.available ( -- f )   Is serial data available
Serial.readBytes ( a n -- n )   Read serial bytes, return number gotten
Serial.write ( a n -- n )   Write serial bytes
Serial.flush ( -- )   Flush serial buffer
Serial Bluetooth
These words are inside the bluetooth vocabulary.
SerialBT.new ( -- bt )   Allocate new BT object
SerialBT.delete ( bt -- )   Free BT object
SerialBT.begin ( localname ismaster bt -- f )
SerialBT.end ( bt -- )
SerialBT.available ( bt -- f )
SerialBT.readBytes ( a n bt -- n )
SerialBT.write ( a n bt -- n )
SerialBT.flush ( bt -- )
SerialBT.hasClient ( bt -- f )
SerialBT.enableSSP ( bt -- )
SerialBT.setPin ( z bt -- f )
SerialBT.unpairDevice ( addr bt -- f )
SerialBT.connect ( remotename bt -- f )
SerialBT.connectAddr ( addr bt -- f )
SerialBT.disconnect ( bt -- f )
SerialBT.connected ( timeout bt -- f )
SerialBT.isReady ( checkMaster timeout -- f )   Default checkMaster=false, timeout=0
Bluetooth
These words are inside the bluetooth vocabulary.
esp_bt_dev_get_address ( -- a ) addr of 6 byte mac address
GPIO
pinMode ( pin mode -- )   Set GPIO pin mode
digitalWrite ( pin value -- )   Set GPIO pin state
analogRead ( pin -- n )   Analog read from 0-4095
pulseIn ( pin value usec -- usec/0 )  Wait for a pulse
Available on devices other than ESP32-C3:
dacWrite ( pin 0-255 -- )  Write to DAC (pin 25, 26)
ledc
These words are inside the ledc vocabulary.
ledcSetup ( channel freq resolution -- freq )
ledcAttachPin ( pin channel -- )
ledcDetachPin ( pin -- )
ledcRead ( channel -- n )
ledcReadFreq ( channel -- freq )   Get frequency (x 1,000,000)
ledcWrite ( channel duty -- )
ledcWriteTone ( channel freq )   Write tone frequency (x 1000)
ledcWriteNote ( channel note octave -- freq )
Short GPIO Names
pin ( value pin# -- )   Set GPIO pin value
adc ( pin# -- n )   Analog read pin, result 0-1023
System
MS ( n -- ) Pause for some number of milliseconds.
MS-TICKS ( -- n ) Time since start in milliseconds.
TERMINATE ( n -- ) Call system exit.
Files
R/O ( -- mode )
R/W ( -- mode )
W/O ( -- mode )
BIN ( mode -- mode )
CLOSE-FILE ( fh -- ior )
OPEN-FILE ( a n mode -- fh ior )
CREATE-FILE ( a n mode -- fh ior )
DELETE-FILE ( a n -- ior )
WRITE-FILE ( a n fh -- ior )
READ-FILE ( a n fh -- n ior )
FILE-POSITION ( fh -- n ior )
REPOSITION-FILE ( n fh -- ior )
FILE-SIZE ( fh -- n ior )
WiFi
These words are inside the WiFi vocabulary.
WiFi.config ( ip dns gateway subnet -- )   Packaged a.b.c.d little-endian
Wifi.begin ( ssid-z password-z -- )
Wifi.disconnect ( -- )
WiFi.status ( -- n )
WiFi.macAddress ( a -- )
WiFi.localIP ( -- ip )
WiFi.mode ( mode -- ) WIFI_MODE_NULL WIFI_MODE_STA WIFI_MODE_AP WIFI_MODE_APSTA
WiFi.setTxPower ( powerx4 -- )   Set power x4
WiFi.getTxPower ( -- powerx4 )   Get power x4

( In 7.0.6.17 and up )
WiFi.softAP ( ssid password/0 -- success )
WiFi.softAPIP ( -- ip )
WiFi.softAPBroadcastIP ( -- ip )
WiFi.softAPNetworkID ( -- ip )
WiFi.softAPConfig ( localip gateway subnet -- success )
WiFi.softAPdisconnect ( wifioff -- success )
WiFi.softAPgetStationNum ( -- num )
mDNS
MDNS.begin ( name-z -- )   Start multicast dns
SPI Flash
These words are inside the spi_flash vocabulary.
spi_flash_init ( -- ) Init driver access.
spi_flash_get_chip_size ( -- n ) Get flash size.
spi_flash_erase_sector ( sector -- err ) Erase a sector.
spi_flash_erase_range ( addr size -- err ) Erase a range.
spi_flash_write ( destaddr src size -- err ) Write to flash.
spi_flash_write_encrypted ( destaddr src size -- err ) Write encrypted.
spi_flash_read ( srcaddr dst size -- err ) Read from flash.
spi_flash_read_encrypted ( srcaddr dst size -- err ) Read encrypted.
spi_flash_mmap ( srcaddr size memtype out outhandle -- err ) Map region.
spi_flash_mmap_pages ( pages pages# memtype out outhandle -- err ) Map pages.
spi_flash_munmap ( handle -- ) Unmap region.
spi_flash_mmap_dump ( -- ) Dump memory map.
spi_flash_mmap_get_free_pages ( memtype -- n ) Get free pages.
spi_flash_cache2phys ( a -- addr ) Get flash addr.
spi_flash_phys2cache ( addr memtype -- a ) Get mapped flash addr.
spi_flash_cache_enabled ( -- f ) Is flash enabled.

esp_partition_t_size ( -- n ) sizeof(esp_parition_t).
esp_partition_find ( type subtype szlabel -- it ) Get partition iterator.
esp_partition_find_first ( type subtype szlabel -- part ) Get first partition.
esp_partition_get ( it -- part ) Get current partition.
esp_partition_next ( it -- it' ) Get next partition.
esp_partition_iterator_release ( it -- ) Free iterator.
esp_partition_verify ( part -- part' ) Verify partition.
esp_partition_read ( part srcoff dst size -- err ) Read from partition.
esp_partition_write ( part dstoff src size -- err ) Write to partition.
esp_partition_erase_range ( part start size -- err ) Erase range.
esp_partition_mmap ( part off size memtype out outhandle -- err ) Map memory.
esp_partition_get_sha256 ( part a -- err ) Get sha256 digest.
esp_partition_check_identity ( part part -- f ) Check partitions for equality.
SPIFFS
These words are inside the SPIFFS vocabulary.
SPIFFS.begin ( format-on-fail path-z max-files -- f )
SPIFFS.end ( -- )
SPIFFS.format ( -- f )
SPIFFS.totalBytes ( -- n )
SPIFFS.usedBytes ( -- n )
WebServer (DEPRECATED)
These words are inside the WebServer vocabulary.

Removed in 7.0.6.14, use httpd instead.

WebServer.new ( port -- ws )   Allocate new webserver object
WebServer.delete ( ws -- )   Delete webserver object
WebServer.begin ( port ws -- )
WebServer.stop ( ws -- )
WebServer.on ( path-z xt ws -- ) Set up a web path handle callback
WebServer.handleClient ( ws -- )   Handle one client request
WebServer.hasArg ( z ws -- f )   By name
WebServer.arg ( z ws -- z )   By name
WebServer.argi ( n ws -- z )   By index
WebServer.argName ( n ws -- z)   By index
WebServer.args ( ws -- n )   Number of args
WebServer.setContentLength ( n ws -- )
WebServer.sendHeader ( name-z value-z fist ws -- )
WebServer.send ( code mimetype data ws -- )
WebServer.sendContent ( z ws -- )
WebServer.method ( ws -- n )   GET / POST etc.
httpd
These words are inside the httpd vocabulary.
server ( port -- ) Run a webserver on a port (in background, returns immediately).
handleClient ( -- f ) Wait for a client to connect, true if connected.
path ( -- a n ) Get request path.
method ( -- a n ) Get request method (GET/POST).
header ( a n -- a n ) Get header value or empty string.
body ( -- a n ) Get request body.
response ( mime mime# result result# status -- ) Respond with a particular mime type result and status.
ok-response ( mime mime# ) Response with a HTTP 200.
bad-response ( -- ) Response with HTTP 400 Bad request.
notfound-response ( -- ) Response with HTTP 404 Not found.
send ( a n -- ) Send response bytes.

NOTE: You may want to use this feature in tandem with tasks / streams.

Example:

also httpd

: handle-index
  s" text/html" ok-response r|

  Hi!

| send ;

: handle1
  ." Got a request for: " path type cr
  path s" /" str= if handle-index exit then
  notfound-response
;

: run  8080 server
       begin handleClient if handle1 then pause again ;
run
Wire
These words are inside the Wire vocabulary.
Wire.begin ( -- f )
Wire.setPins ( sda scl -- f )
Wire.setClock ( frequency -- )
Wire.getClock ( -- frequency )
Wire.setTimeout ( ms -- ) Default is 50ms
Wire.getTimeout ( -- ms )
Wire.beginTransmission ( n -- )
Wire.endTransmission ( sendstop -- f ) Default is true
Wire.requestFrom ( address quantity sendstop -- n )
Wire.write ( a n -- n )
Wire.available ( -- f )
Wire.read ( -- ch )
Wire.peek ( -- ch )
Wire.flush ( -- )
These words were available in v7.0.6.5 and before, but are now deprecated as the underlying Arduino functions have gone away in the v2.0.1 ESP32 Arduino library.
Wire.lastError ( -- n )
Wire.getErrorText ( n -- z )
Wire.busy ( -- f )
Wire.writeTransmission ( addr a n sendstop -- err )
Wire.readTransmission ( addr a n sendstop acount -- err )
Camera
These words are inside the camera vocabulary.
esp_camera_init ( config -- f )
esp_camera_deinit ( -- f )
esp_camera_fb_get ( -- fb )
esp_camera_fb_return ( fb -- )
esp_camera_sensor_get ( -- sensor )
Camera Server

Requires v7.0.6+

WIP Prototype - Not yet stable
These words are inside the camera-server vocabulary.
server ( port -- ) Start an image server at port,
                   e.g. http://IP/image will produce an image
SD
These words are inside the SD vocabulary. They allow use of an SDcard over SPI.
SD.begin ( -- ok )   uses all the defaults "/sd" etc.
SD.beginDefaults ( -- sspin SPIClass frequency mountpointsz maxfiles format_if_empty )
                 (    SS    SPI      4000000   "/sd"        5        false )
SD.beginFull ( sspin SPIClass frequency mountpoint maxfiles format_if_empty -- ok )
SD.end ( -- )
SD.cardType ( -- n )
SD.totalBytes ( -- n )
SD.usedBytes ( -- n )
SD_MMC
These words are inside the SD_MMC vocabulary. They allow use of an SDcard over MMC internal interface.
Note, SD_MMC is unavailable on ESP32-S2 and ESP32-C3.
SD_MMC.begin ( -- ok )   uses all the defaults "/sdcard" etc.
SD_MMC.beginDefaults ( -- mountsz   mode1bit format_if_fail )
                     (    "/sdcard" false    false )
                     (    sdmmc_freq not supported for generality )
SD_MMC.beginFull ( mountsz mode1bit format_if_fail -- ok )
SD_MMC.end ( -- )
SD_MMC.cardType ( -- n )
SD_MMC.totalBytes ( -- n )
SD_MMC.usedBytes ( -- n )
Interrupts
These words are inside the INTERRUPTS vocabulary.

High Level words:

pinchange ( xt pin -- ) Call xt when pin changes.

Example:

17 input pinMode
: test ." pinvalue: " 17 digitalRead . cr ;
' test 17 pinchange
Interrupts
These words are inside the interrupts vocabulary.
ESP_INTR_FLAG_DEFAULT -- Default handler allows per pin routing

Various triggers:
  #GPIO_INTR_DISABLE
  #GPIO_INTR_POSEDGE
  #GPIO_INTR_NEGEDGE
  #GPIO_INTR_ANYEDGE
  #GPIO_INTR_LOW_LEVEL
  #GPIO_INTR_HIGH_LEVEL

gpio_config ( gpio_config_t* -- 0/err )
gpio_reset_pin ( pin -- 0/err )

gpio_set_intr_type ( pin type -- 0/err )

gpio_intr_enable ( pin -- 0/err )
gpio_intr_disable ( pin -- 0/err )

gpio_set_level ( pin level -- 0/err )
gpio_get_level ( pin -- level )

gpio_set_direction ( pin mode -- 0/err )

gpio_set_pull_mode ( pin mode -- 0/err )

gpio_wakeup_enable ( pin type -- 0/err )
gpio_wakeup_disable ( pin -- 0/err )

gpio_pullup_en ( pin -- 0/err )
gpio_pullup_dis ( pin -- 0/err )
gpio_pulldown_en ( pin -- 0/err )
gpio_pulldown_dis ( pin -- 0/err )
gpio_hold_en ( pin -- 0/err )
gpio_hold_dis ( pin -- 0/err )

gpio_deep_sleep_hold_en ( -- )
gpio_deep_sleep_hold_dis ( -- )

gpio_install_isr_service ( a -- ) Typically ESP_INTR_FLAG_DEFAULT
gpio_uninstall_isr_service

gpio_isr_handler_add ( pin xt arg -- 0/err )
gpio_isr_handler_remove ( pin -- 0/err )

gpio_set_drive_capability ( pin cap -- 0/err )
gpio_get_drive_capability ( pin cap* -- 0/err )

esp_intr_alloc ( source flags xt args handle* -- 0/err )
esp_intr_free ( handle -- 0/err )
Timers
These words are inside the timers vocabulary.
timer_isr_register ( group timer xt arg ret -- 0/err )
RMT
These words are inside the RMT vocabulary.
rmt_set_clk_div ( channel div8 -- err )
rmt_get_clk_div ( channel @div8 -- err )
rmt_set_rx_idle_thresh ( channel thresh16 -- err )
rmt_get_rx_idle_thresh ( channel @thresh16 -- err )
rmt_set_mem_block_num ( channel memnum8 -- err )
rmt_get_mem_block_num ( channel @memnum8 -- err )
rmt_set_tx_carrier ( channel enable highlev lowlev carrierlev -- err )
rmt_set_mem_pd ( channel f -- err )
rmt_get_mem_pd ( channel @f -- err )
rmt_tx_start ( channel f -- err )
rmt_tx_stop ( channel -- err )
rmt_rx_start ( channel f -- err )
rmt_rx_stop ( channel -- err )
rmt_tx_memory_reset ( channel -- err )
rmt_rx_memory_reset ( channel -- err )
rmt_set_memory_owner ( channel owner -- err )
rmt_get_memory_owner ( channel @owner -- err )
rmt_set_tx_loop_mode ( channel f -- err )
rmt_get_tx_loop_mode ( channel @f -- err )
rmt_set_rx_filter ( channel enable thresh8 -- err )
rmt_set_source_clk ( channel baseclk -- err )
rmt_get_source_clk ( channel @baseclk -- err )
rmt_set_idle_level ( channel enable level -- err )
rmt_get_idle_level ( channel @enable @level -- err )
rmt_get_status ( channel @status -- err )
rmt_set_rx_intr_en ( channel enable -- err )
rmt_set_err_intr_en ( channel enable -- err )
rmt_set_tx_intr_en ( channel enable -- err )
rmt_set_tx_thr_intr_en (channel enable thresh -- err )
rmt_set_gpio ( channel mode gpio# invertsig -- err )
rmt_config ( rmt_config_t* )
rmt_isr_register ( fn arg allocflags handle -- err )
rmt_isr_deregister ( handle -- err )
rmt_fill_tx_items ( channel @items items# offset -- err )
rmt_driver_install ( channel rxbufsize allocflags -- err )
rmt_driver_uinstall ( channel -- err )
rmt_get_channel_status ( channel @status -- err )
rmt_get_counter_clock ( channel @clockhz -- err )
rmt_write_items ( channel @items items# wait -- err )
rmt_wait_tx_done ( channel time -- err )
rmt_get_ringbuf_handle ( channel @handle -- err )
rmt_translator_init ( channel fn -- err )
rmt_translator_set_context ( channel @context -- err )
rmt_translator_get_context ( channel @@context -- err )
rmt_write_sample ( channel src src# wait -- err )
rmt_register_tx_end_callback --- NOT SUPPORTED
rmt_memory_rw_rst --- DEPRECATED USE rmt_tx_memory_reset or rmt_rx_memory_reset
rmt_set_intr_enable_mask --- DEPRECATED interrupt handled by driver
rmt_clr_intr_enable_mask --- DEPRECATED interrupt handled by driver
rmt_set_pin --- DEPRECATED use rmt_set_gpio instead
Tasks
These words are inside the TASKS vocabulary.
PAUSE ( -- ) Yield to other tasks.
MS ( n -- ) Pause for some number of milliseconds (yields to other tasks).
TASK ( xt dsz rsz "name" -- ) Create a new task with dsz size data stack
                              and rsz size return stack running xt.
START-TASK ( task -- ) Activate a task.
.TASKS ( -- ) List running tasks.

Example:
tasks
: hi   begin ." Time is: " ms-ticks . cr 1000 ms again ;
' hi 100 100 task my-counter
my-counter start-task
Timers
These words are inside the TIMERS vocabulary.
NOTE: These are low level ESP32 timers. For a periodic background operation, you'll probably want to use TASKS.

High Level words:

( timer t = 0-3 )

interval ( xt usec t -- ) Setup timer t to call xt each after usec
rerun ( t -- ) Rerun timer t triggering

Example:
timers
: hi   ." hi" cr   0 rerun ;
' hi 1000000 0 interval ( run hi every second )

Medium Level words:

timer@ ( t -- lo hi )
timer! ( lo hi t -- )
alarm ( t -- a )
enable! ( f t -- ) Timer enable/disable
increase! ( f t -- ) Timer increasing/decreasing
divider! ( n t -- ) Timer divider 2 - 65535
edgeint! ( f t -- ) Edge trigger
levelint! ( f t -- ) Level trigger
alarm-enable! ( f t -- ) Alarm enable
alarm-enable@ ( t -- f ) Alarm enabled?
onalarm ( xt t -- ) Set callback

Low Level words:

( group n = 0/1, timer x = 0/1, watchdog m = 0-5 )

TIMGn_TxCONFIG_REG ( n x -- a )
TIMGn_TxLOHI_REG ( n x -- a )
TIMGn_TxUPDATE_REG ( n x -- a )
TIMGn_TxALARMLOHI_REG ( n x -- a )
TIMGn_TxLOADLOHI_REG ( n x -- a )
TIMGn_TxLOAD_REG ( n x -- a )

TIMGn_Tx_WDTCONFIGm_REG ( n m -- a )
TIMGn_Tx_WDTFEED_REG ( n -- a )
TIMGn_Tx_WDTWPROTECT_REG ( n -- a )

TIMGn_RTCCALICFG_REG ( n -- a )
TIMGn_RTCCALICFG1_REG ( n -- a )

TIMGn_Tx_INT_ENA_REG ( n -- a )
TIMGn_Tx_INT_RAW_REG ( n -- a )
TIMGn_Tx_INT_ST_REG ( n -- a )
TIMGn_Tx_INT_CLR_REG ( n -- a )
RTOS
These words are inside the RTOS vocabulary.
xPortGetCoreID ( -- n )
xTaskCreatePinnedToCore ( fn name stack-depth params priority taskout coreid -- )
vTaskDelete ( task ) -- )

ESP32 WebUI

A terminal over the web can be activated. Contact at port printed or via mDNS http://forth/.

webui ( network-z password-z -- ) login and start webui
login ( network-z password-z -- ) login to wifi only

Usage:

z" NETWORK-NAME" z" PASSWORD" webui

See web_interface.fs.

Autoexec.fs

NOTE: This section describes one mechanism for running code at startup. See this for an alternate option.

The system will automatically attempt to mount SPIFFS filesystem at /spiffs. It will then at start attempt to load /spiffs/autoexec.fs

One way this feature can be used to configure the Web UI to start by default. When doing this, be sure to test your Web UI settings work well first.

r| z" NETWORK-NAME" z" PASSWORD" webui | s" /spiffs/autoexec.fs" dump-file

To remove a previously configured autoexec.fs you will need to be able to reboot in a mode with Forth. One way to do this is to search for the line in the .ino file that refers to autoexec.fs and replace it with a different name. Then run the following:

s" /spiffs/autoexec.fs" delete-file

See autoboot.fs.

Adding Words

Words can be added based on C functions by placing a file named userwords.h alongside the .ino file for ESP32forth.
(Requires v7.0.6.4+)
Before v7.0.6.4, user words required editing the .ino file.

Because of the use of X-Macros words can be added in as little as one line. Locate the macro called PLATFORM_OPCODE_LIST and add your words there.

NOTE: Be careful to end each line with a \ so the macros will chain correctly.

To add a word containing only letters, numbers, and underscore you can use Y.

---- userwords.h ----
#define USER_WORDS \
  Y(MY_WORD123, c_function_to_call()) \

If your word name contains other characters, instead use X. You will need to make up an alternate name for the middle parameter. It must contain only letters, numbers, and underscore. The name is not used anywhere else, but must be unique.

---- userwords.h ----
#define USER_WORDS \
  X("myword!", MY_WORD_BANG, c_function_to_call()) \

Values from the data stack can be accessed via the variables tos (Top of Stack) and sp (Pointer to the rest of the stack). The stack has the data type cell_t.

You can push a value of any type to the stack with the macro PUSH:

---- userwords.h ----
#define USER_WORDS \
  Y(MY_WORD, PUSH calculate_magic_value()) \

To simplify calling C functions, you can also refer to elements on the stack with the types positional names:

n10 n9 n8 n7 n6 n5 n4 n3 n2 n1 n0 - Access stack as cell_t integer values
                   c4 c3 c2 c1 c0 - Access stack as char* values
                   b4 b3 b2 b1 b0 - Access stack as uint8_t* byte values
             a6 a5 a4 a3 a2 a1 a0 - Access stack as void* values

Examples:

---- userwords.h ----
void send_message(const char *message, int code);
...
#define USER_WORDS \
  X("send-message", SEND_MESSAGE, send_message(c1, n0)) \

You can always replace the top item on the stack with SET:

---- userwords.h ----
#define USER_WORDS \
  Y(DECODE, SET decode_func(n0)) \

You can drop elements from the stack with DROP or DROPn(number). You can nip elements from below top of the stack with NIP or NIPn(number). Be aware that like PUSH this will cause stack indices to change.

---- userwords.h ----
int my_cool_function(char *foo, int bar, uint8_t *baz);
...
#define USER_WORDS \
  Y(MY_FUNC, n0 = my_cool_function(c2, n1, b0); NIPn(2)) \

Multiple C statements can be included in the code area of a word, but care must be taken to generally avoid {}s. If you find you need nesting, a separate function is recommended.

New variables can be declared in each word and are scoped to that word.

---- userwords.h ----
#define USER_WORDS \
  Y(MY_WORD, cell_t foo = n0; DROP; char *x = c0; DROP; \
             PUSH my_func(foo, x)) \
